Low-pressure piston valves
Certified Tanks with Integrated Piston Valves for Cleaning Filter Elements at Low Pressure
Trimec has been active in the filtration field for over 15 years, developing valves, control units and accessories for dedusting systems

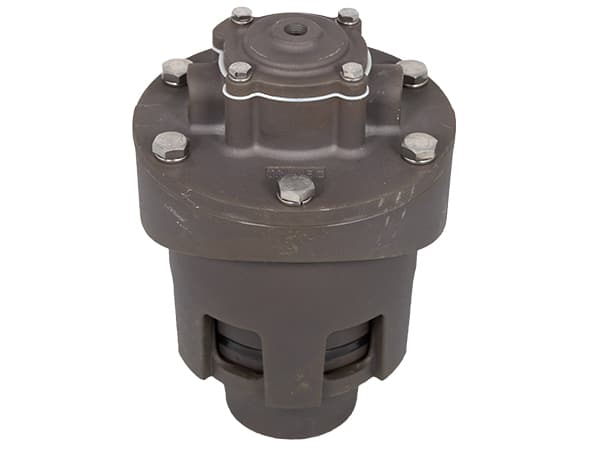

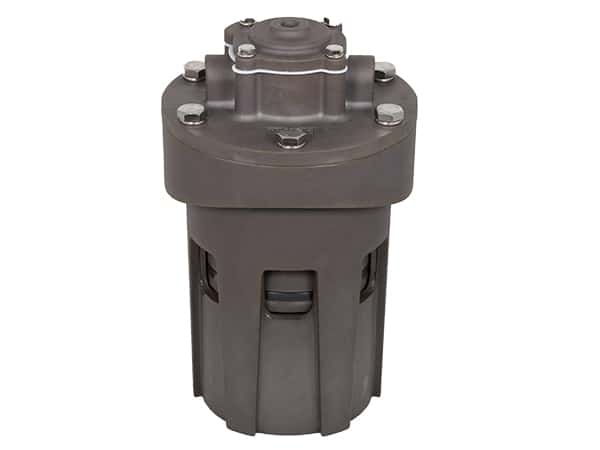

The Sonic Piston Valve is the product that best represents the TRIMEC technology.
Designed for high-performance cleaning of filter elements, the valve operates at low pressure (2–3 bar max) and features a direct airflow path that generates a sonic wave. This wave uniformly cleans the entire length of the filter bag. High peak pressures are achieved with significantly reduced air consumption. The result is a highly efficient and effective improvement of filtration systems, making them innovative and sustainable.
Thanks to this cutting-edge technology, Trimec SPV valves can effectively clean filters up to 12 meters in length, enabling up to 40% more filtering surface area.
Our line of low-pressure SPV valves ranges from 2” to 3”1/2.
Valve selection is defined in the initial design phase by our team based on the number and size of filter elements that each valve must effectively clean.
Do not hesitate to contact us for any queries regarding Trimec brand valves. We’re at your service, operating actively throughout Italy.
2” Valve
2” ½ Valve
3” Valve
3” ½ Valve
Operation and applications
Low pressure operation from 2 to 4 bar with superior performance compared to traditional cleaning systems for applications in various industries including cement, steel, glass and waste treatment.

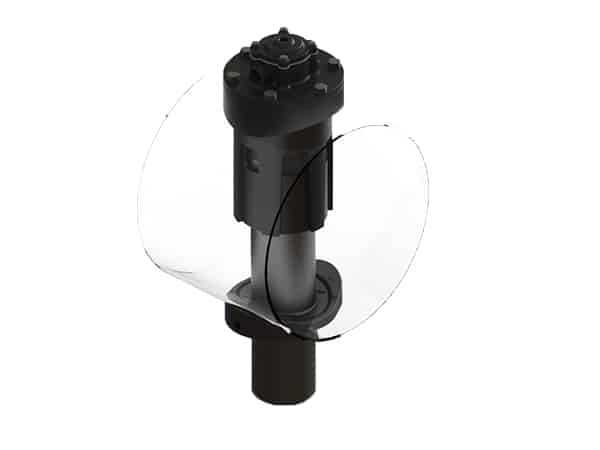

The piston valve allows to generate a high-speed sonic wave, which enables complete cleaning of the filter element thanks to the high-pressure peaks generated by this type of valve.
Low-pressure operation also increases the life of the filter elements, as well as allowing considerable energy savings compared to conventional diaphragm valves.
Possibility of online and offline washing without the need for performance-enhancing accessories (nozzles or venturi devices)
Compatible with all different types of bags: Fiberglass, PTFE, Polyester…
Maintenance
The valve’s data sheet lists the spare parts required to ensure that the valve is always operating at maximum efficiency.
ENERGY EFFICIENCY
Air consumption reduced by 40% and performance increased by 35% compared to conventional cleaning valves.
Cleaning bags up to 12 metres long with a 40% increase in filter surface area compared to conventional diaphragm valves.
Certifications
CE, Ex, ASME, CRN and JIS certifications available.
ACCESSORIES
The tanks are always equipped with the standard accessories: pressure gauge, condensate drain and safety valve. Other accessories can be supplied at the customer’s request.
Reasons for choosing our piston valves
- Reduced air consumption
- Maximum cleaning efficiency of the filter surface
- Reduced maintenance costs
- Guaranteed quality and efficacy
- Energy savings
And many other benefits…
